Web Break Supervisor

WBS - Automated On Line system for web supervision, detection and analysis of breaks

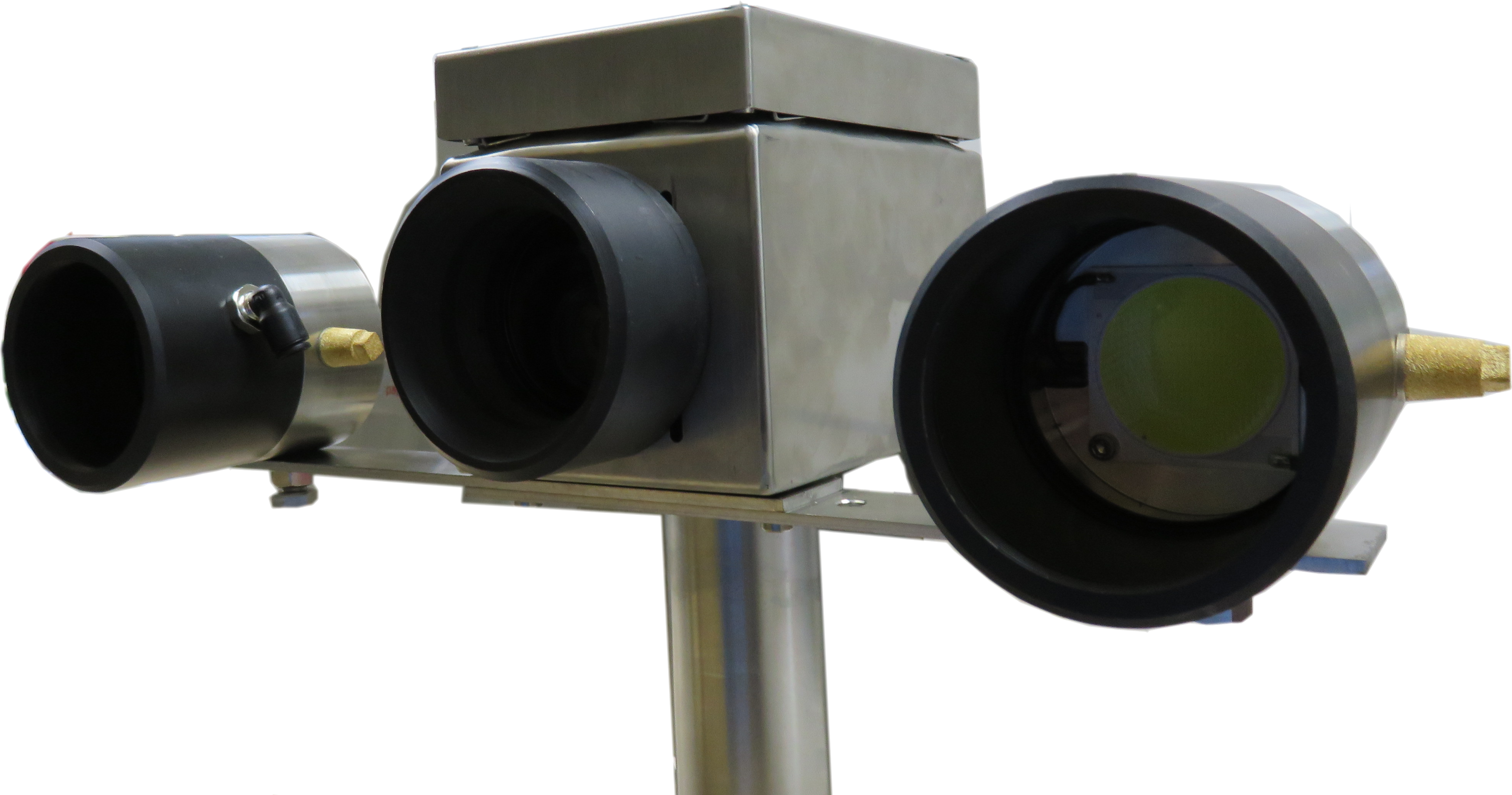

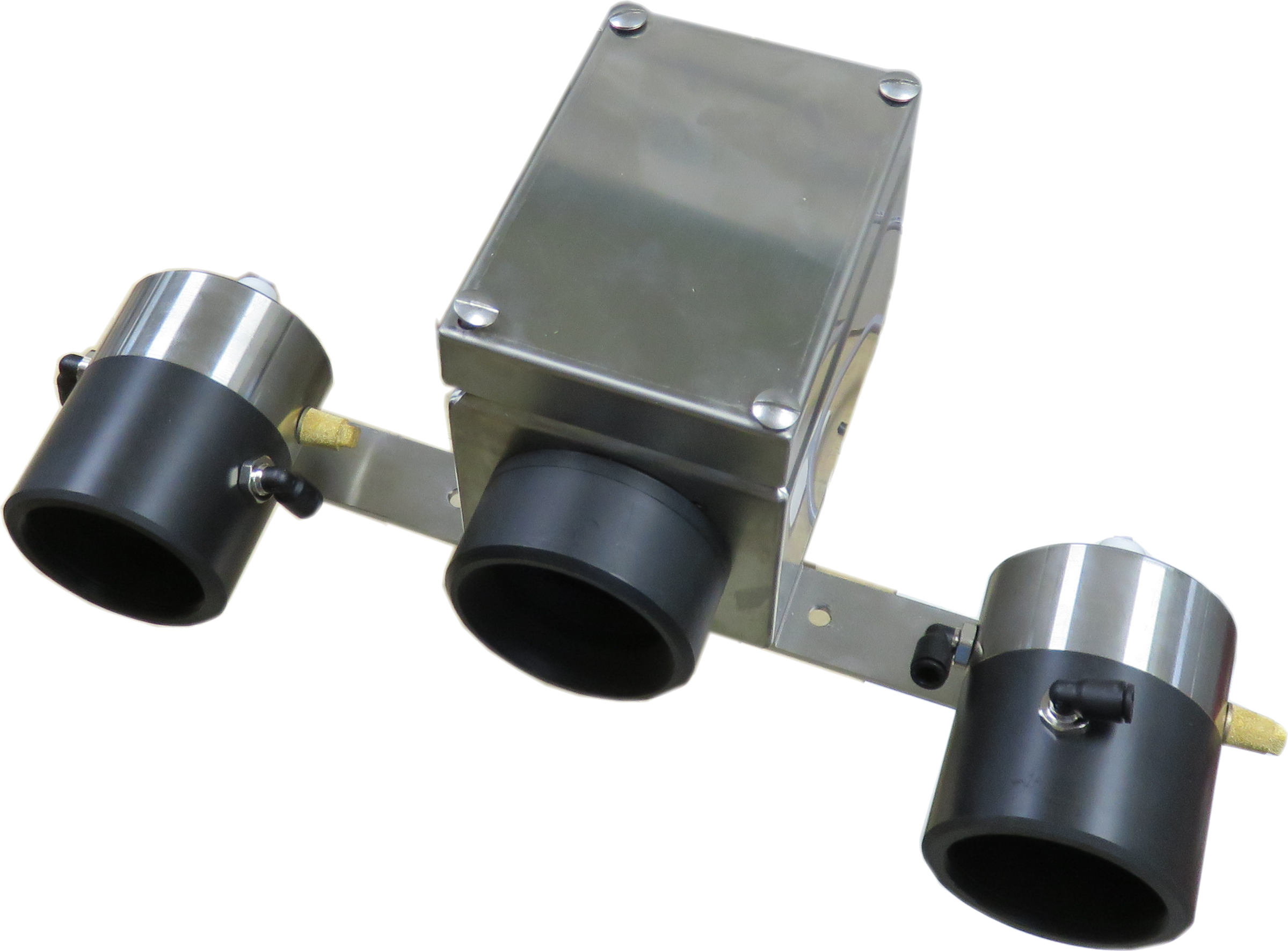

NEW CAMERA GENERATION &

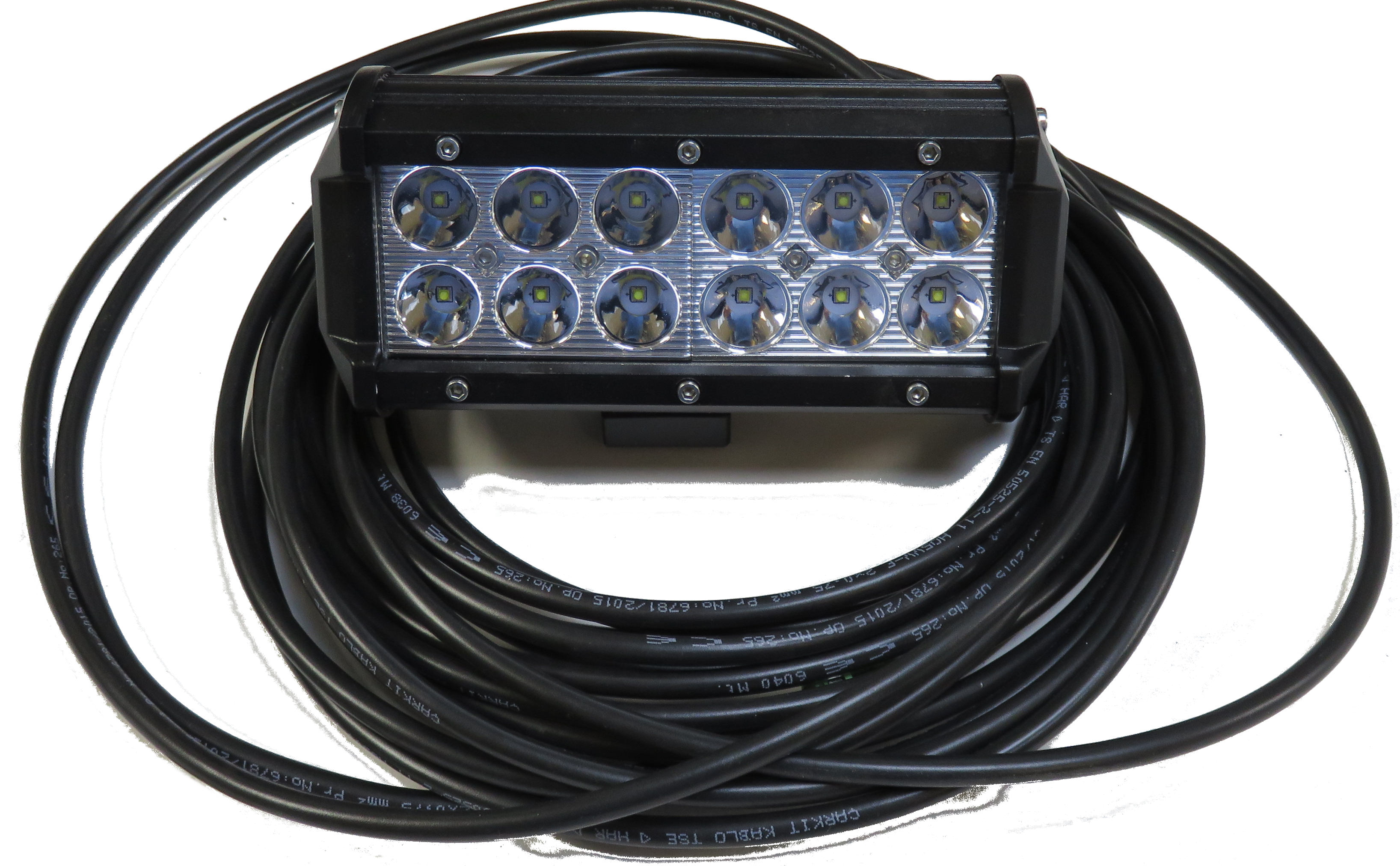

LED PULSED LIGHT







- More Sensitive CCD

- Zone restriction to see only what's important

-  Pixel binding for a more accurate sensitivity (to see even when light is lacking)





A web break monitoring system designed to meet all paper machine configurations

Web breaks always result in unnecessary cost and a waste of time for papermakers. The Automated Web Break Supervising system developed by TECHPAP, is the culmination of 30 years experience in papermaking and image analysis.
The system offers a new modular concept, which complies with virtually all configurations requirements while following specific mill parameters.


Break analysis window As defects are detected  they can be immediately visualized Makes it possible to visualize all breaks  in a given time to track origins, trends,  event time, type. The system can visualize  all live camera images at once on one screen

Real time fault detection
One or several cameras can be dedicated to online defaults analysis :
  • Holes
  • Edge cracks
  • Trim nozzles
  • Flakes

User Friendly software
The software is conceived with an emphasis on design simplicity and efficiency. The software interface includes 4 different pages
  • Live monitoring
  • Event analysis
  • Statistics
  • Real time detection

WBS brochure in French

 WBS brochure in English
