3D Stick

NEW METHOD FOR MACROSTICKIES MEASUREMENT - TOWARD REDUCED DISTURBANCE

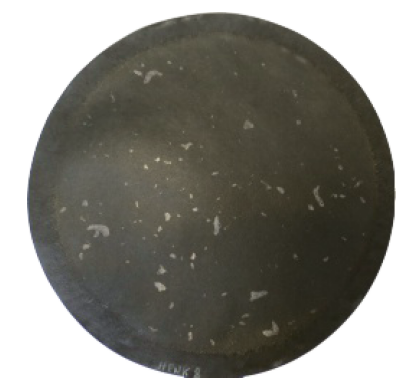

 STICKIES PARTICLES

 Most harmful mini-stickies :

mainly mini PSA : Pressure Sensitive Adhesives





INGEDE METHOD #4

Pressing

No 3D info

No information on nature

Time consuming

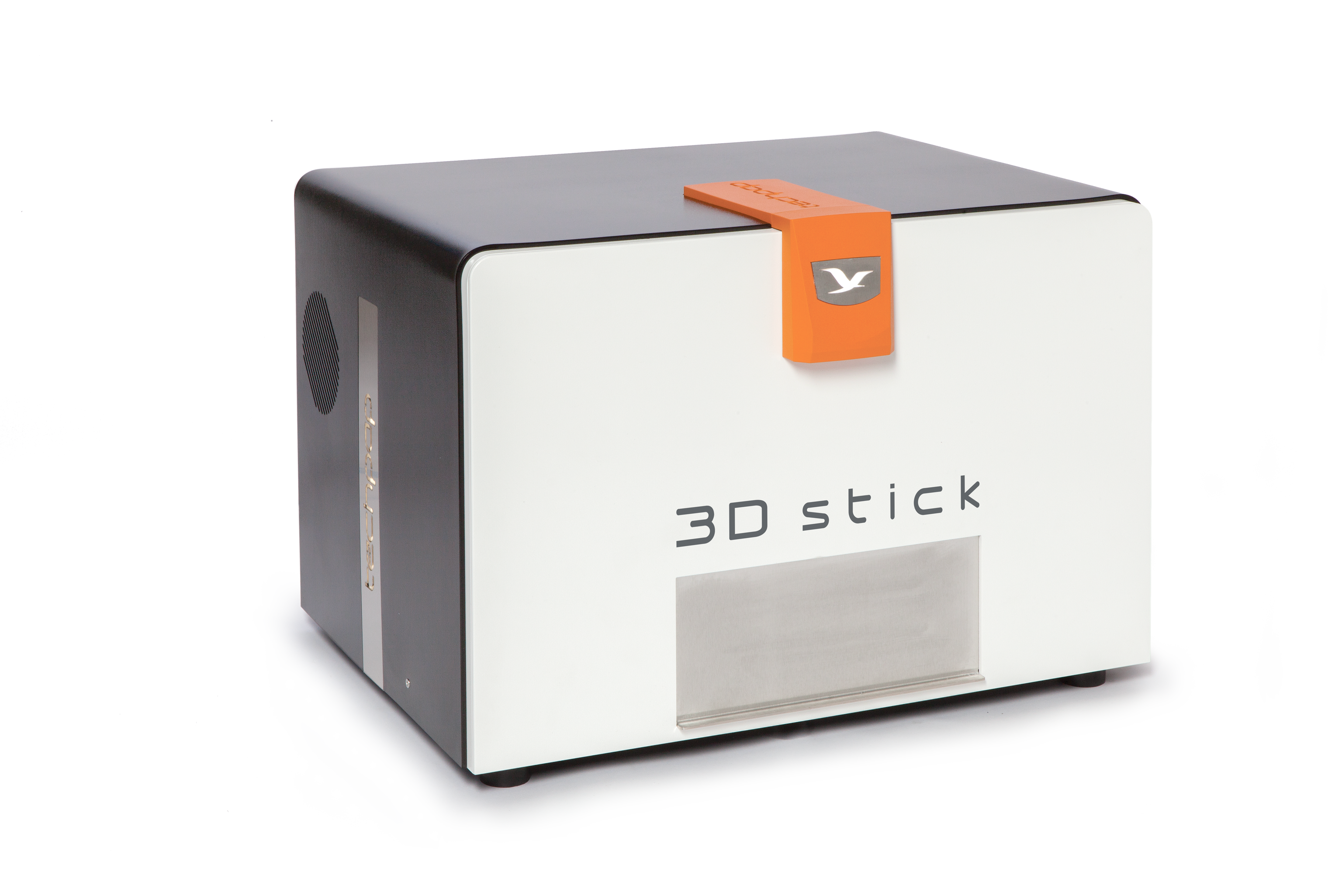

AUTOMATED STICKIES 3D STICK MEASUREMENT METHOD :

• Determines the 3D morphology of screened particles (without any deformation)

• Classifies the particles as stickies among contaminants.





THE DEVICE PRINCIPLE :

» Determination of contaminant morphology in 3D (3D-Map)



» Stickies identification by Near Infrared Spectroscopy (NIRS)

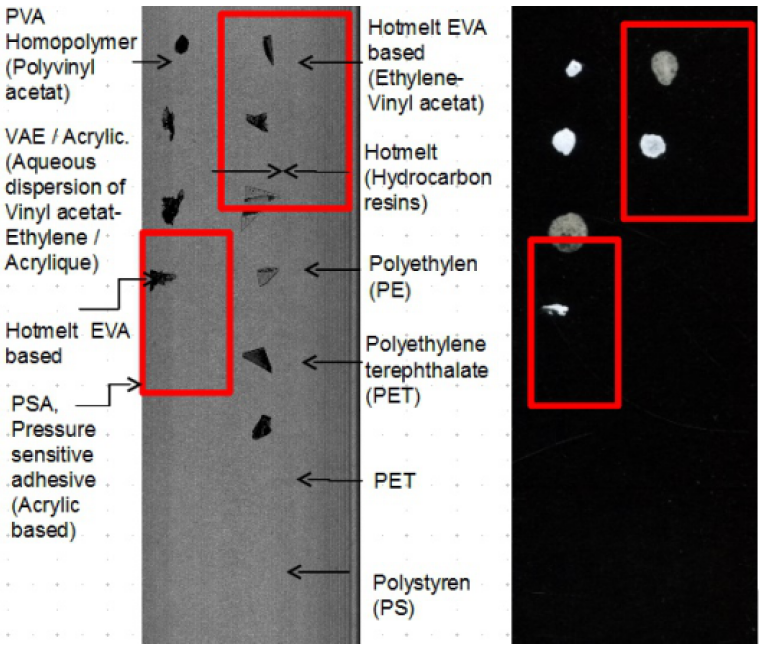

RICHER INFORMATION :

» 3D Morphology

» Macro contaminants classified by

  their chemical nature

» Not restricted to stickies (plastics)



NON CONTACT METHOD :

» Stickies are not pressed

» Real size is measured
