Laboratory Dirt Analyzer

Simpalab - Laboratory Dirt Analyzer


THE SIMPATIC LABO IS A LABORATORY
DIRT COUNTER :



To test the contamination of  a paper sheet , pulp sheet or handsheet (by reflected light or  transmitted* light)

A RELIABLE AND POWERFUL TOOL

The Techpap Dirt analyzer enable a quick measurement and calculation of your sample.

Calibration of the measuring system according to the EFPG standard

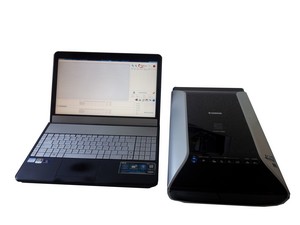

The dot counter is running under latest Windows operating system
It is compatible with several flatbelt scanners from wellknown manufacturers such as Canon, Epson, HP,...

Ask Techpap for your scanner compatibility.





ISO 5350
CEN/TC 172
TAPPI T563
INGEDE4(STICKIES)

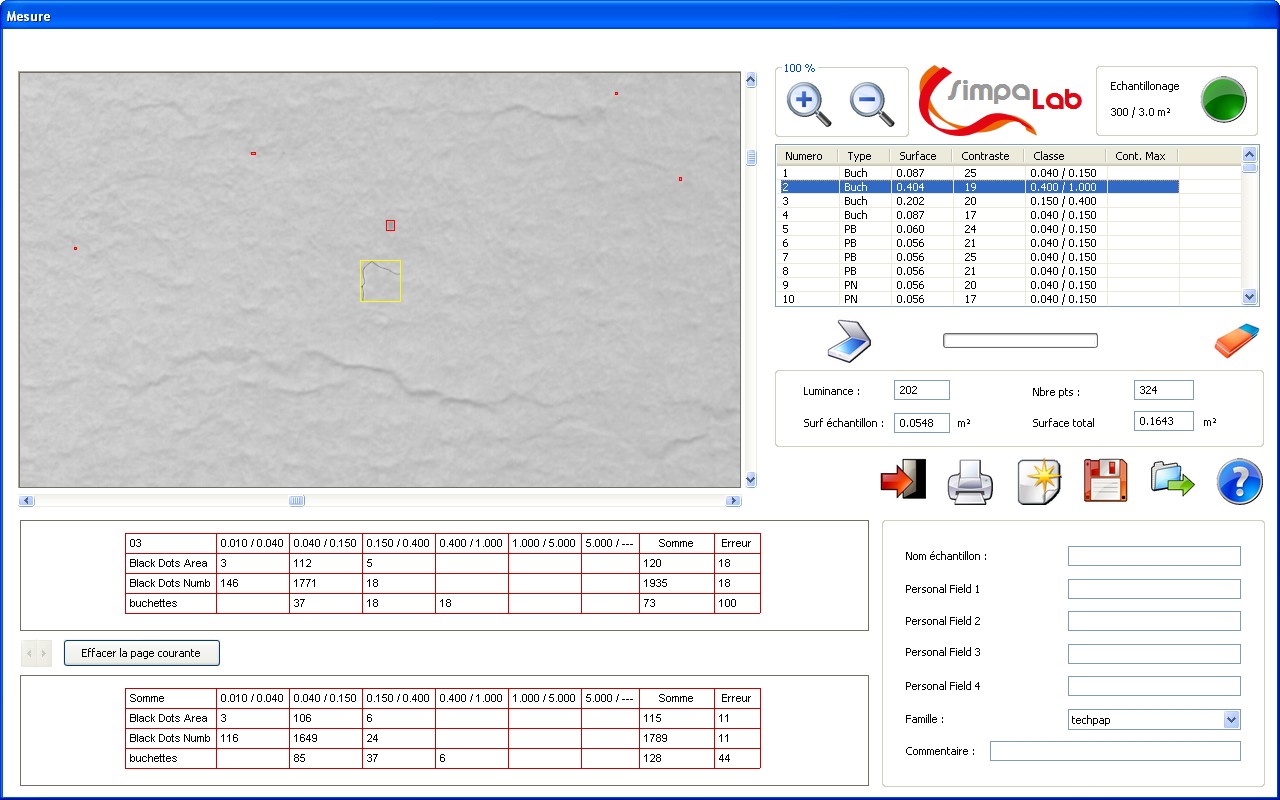

A FRIENDLY SOFTWARE

Measurement window
Scan & Preview display
Individual investigation of each detected spot
Global results summury


Family testing management
1 configuration window
ISO classes
20 configurable classes

Detected objects
Black spots (63μm)
White dots
Grey spots
Shives
Stickies






Dirt Analyser Lab brochure in Russian

Dirt Analyser Lab brochure in German

Dirt Analyser Lab brochure in French

Dirt Analyser Lab brochure in English
