PI Dirt & Shives

PI - On Line Dirt & Shives analysis module



THE DIRT & SHIVES MODULE PERFORM ANALISES THE WHOLE PULP FLOWING THROUGH A MEASURING CELL AND COUNTS ALL IMPURITIES TYPICALLY FOUND IN PULPS AS DIRT DOTS AND SHIVES
DIRT & SHIVES MODULE

This module is based on the well known Simpatic dirt counter developped by CTP.
15 years of experience in online dirt counting for deinking & recycling pulps as well for paper manufacturer.

With a resolution from 50μm to 100μ the system takes up to 30 images per seconds with digital IP camera It uses the same sampler as basic Pulp Inspector module



Results

The simpatic software perform on the fly analysis to detect all contrasted contaminants in the pulp flow such as:

  • black contrasted dirt
  • white contrasted elements
  • shives discriminated by shape ratio detection



All those elements are classified by size classes & surface



Pulp Inspector brochure in English

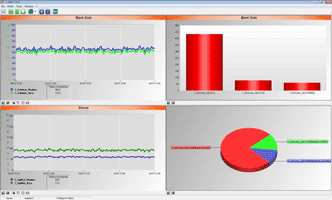

XTREND INTERFACE

Techpap has developped a graphic interface

  • Multi users (through TCP/IP)
  • Multi sensor

Each workspace configurable with:

  • Trend curves
  • Histogram
  • Sectors...
