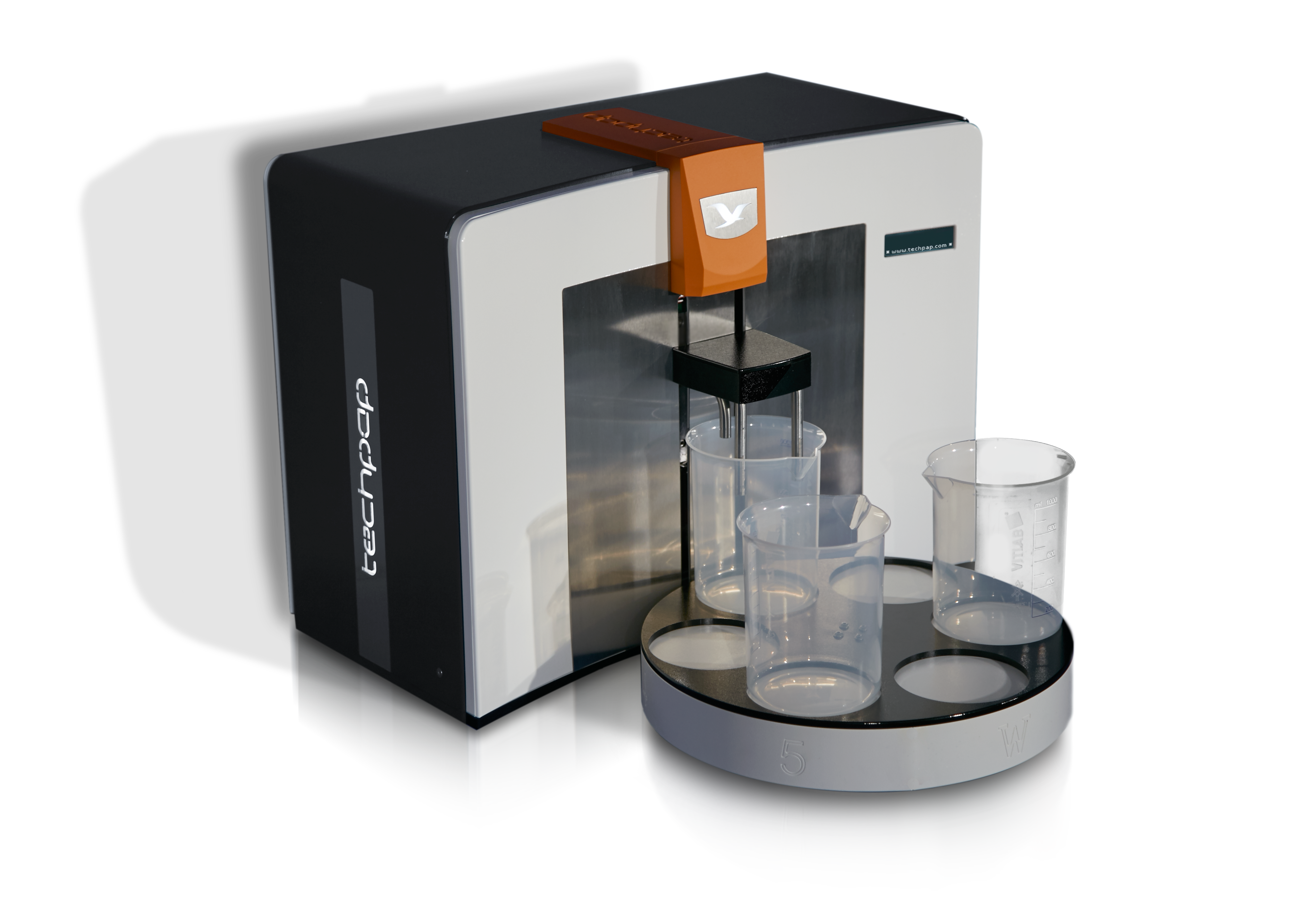

Fiber & Shive Analyzer - MorFi Neo

MorFi Neo - Fiber Morphology measurement and characterization with enhanced resolution for optimized results



♦ Automatic sample dilution
♦ Consistency Calculation
♦ Quantitative, statistical characterization on :
- Length, width, bends, boken ends, curvature,
- Wall thickness
- Microfibrillation
- ....

MorFi Neo is a brand new edition of MorFi Compact. Equiped with the latest camera technology, and utilizing an enhanced resolution for the best image treatment. It is designed for day to day production control, routine laboratory tests, and also for R&D purposes. With the new resolution, we are able to measure the Microfibrillation more precisely. MorFi Neo can be also a good tool to monitor first steps of the nano fibers production during refining. The interface gives a complete display of the treated data and makes it possible to recalculate this data to highlight different features. The data can be saved and exported to other computer programs.
MorFi Neo is able
to detect:

- Fibers
- Fines
- Shives
- Vessels


FIBERS

Average & Distribution for
Real Length Measurements
Weighted Length Measurements
Width Measurements
Kinked and Curled Fibers
Fiber Broken Ends
Macrofibrills

ISO/FDIS 160652

FINE ELEMENTS

Average & Distribution for
% in Area
% in Length
Number per gram

SHIVES & VESSELS

Average & Distribution for
Length
Width
Area
% area / fibers
Number per gram

Portable
  • 110V or 220V power connection
  • Water & air connection not needed
  • Light weight with aluminium case
  • Operates with a laptop computer

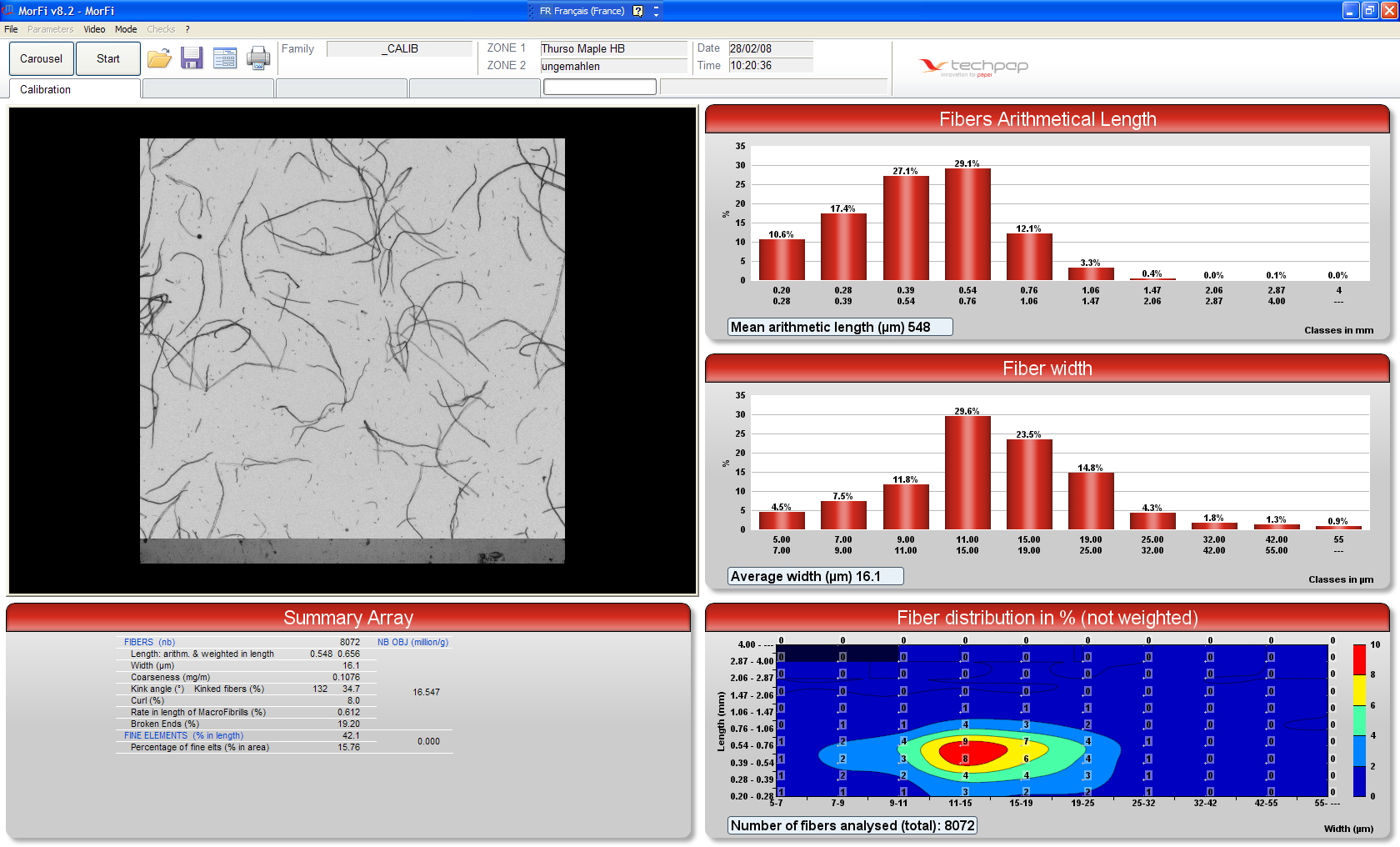

User Friendly Software
  • All parameters adjustable including fibers & fines definitions
  • Instant data recalculation using new parameter values (no time limit on data history)
  • Real time fiber images displayed on screen as well as data acquisition
  • Full data exportation & multi test exportation for easy result analysis under Excel

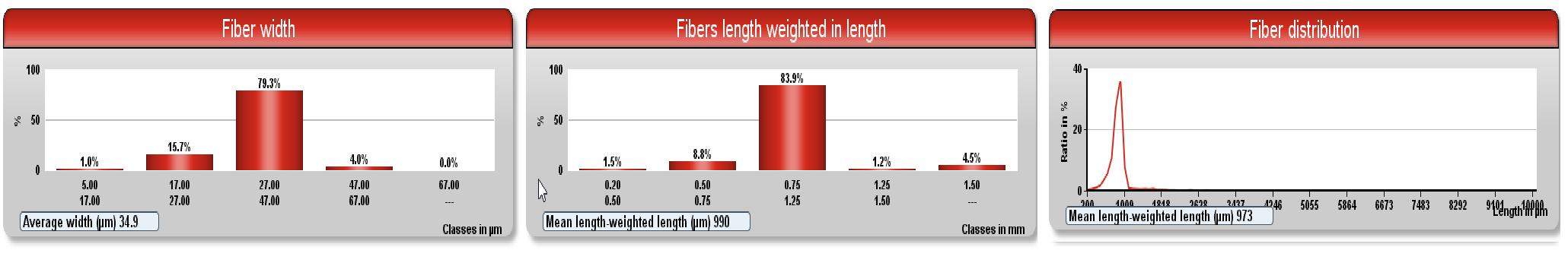

  • Easy to understand histograms, arrays and curves
  • Images saving ability
  • Three passwords protect user authorization levels




 Fiber Analyzer MorFi Neo brochure in English

 Fiber Analyzer MorFi Neo brochure in Italian
