Dirt analyser for large size samples

SIMPASCAN - for large sized paper samples and pulp sheets



ACCURATE MEASUREMENT OF INK, DIRT, SHIVES AND

STICKIES

SIMPASCAN is a laboratory sensor dedicated to an accurate dirt counting on:
- a paper sheet by reflected light
- a pulp sheet by transmitted light

Thanks to the powerful led system SIMPASCAN is able to perform scan of individual pulp sheet either by reflected light or by transmission according to ISO standards

A RELIABLE and POWERFUL TOOL

- Linear camera 12 288 pixels
- Resolution 400­450 dpi (pixel size 57­67 μm)
- Maximal width of the measurement area of 83 cm
- Analysis time < 1 minute
- Dimensions (lWh) 1m x 1m x 1m20

Calibration of the measuring system according to the EFPG standard (CEN/TC 172).

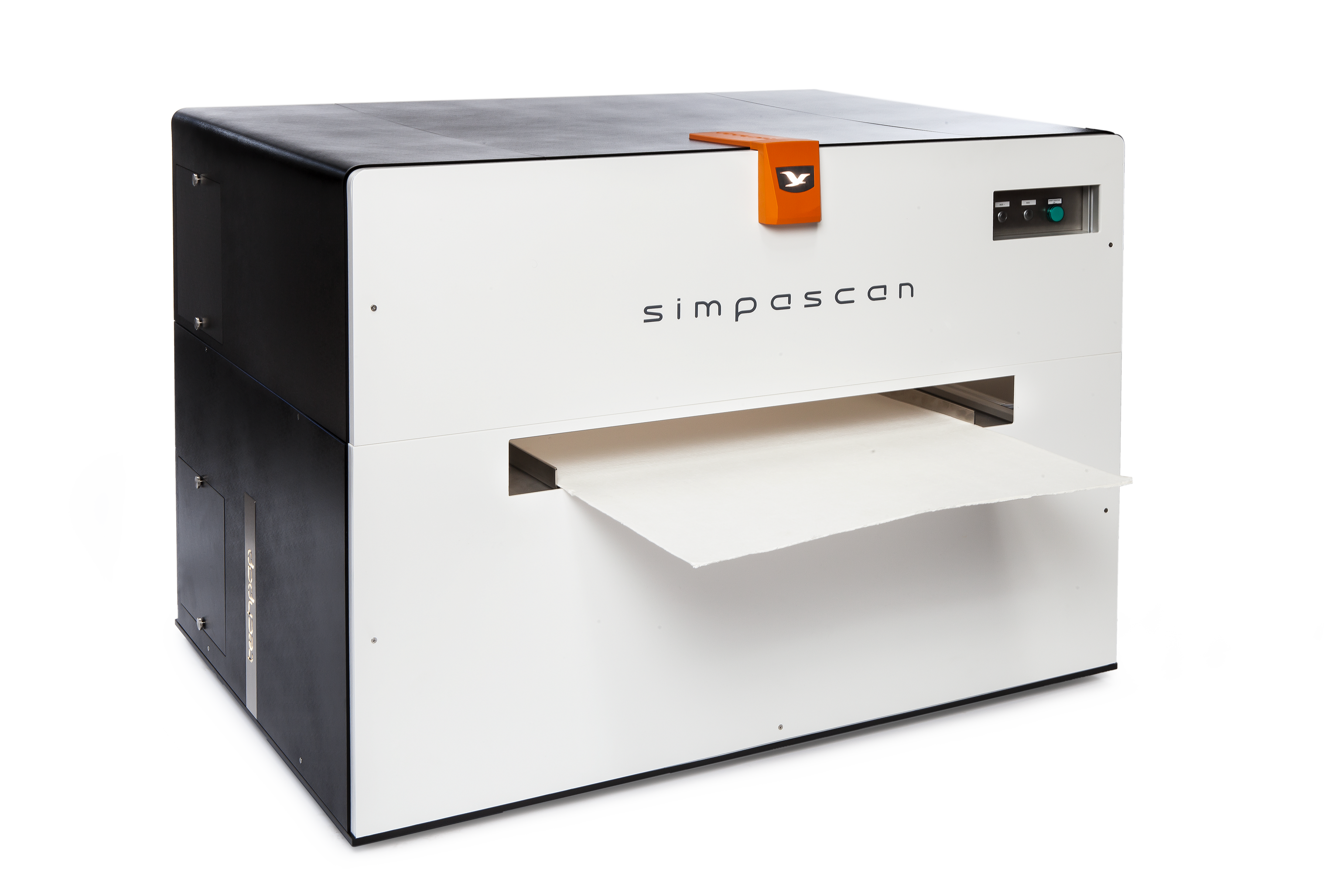

Simpascan


 Detected objects

- Black spots (63μm)
- Grey spots
- Shives, Stickies

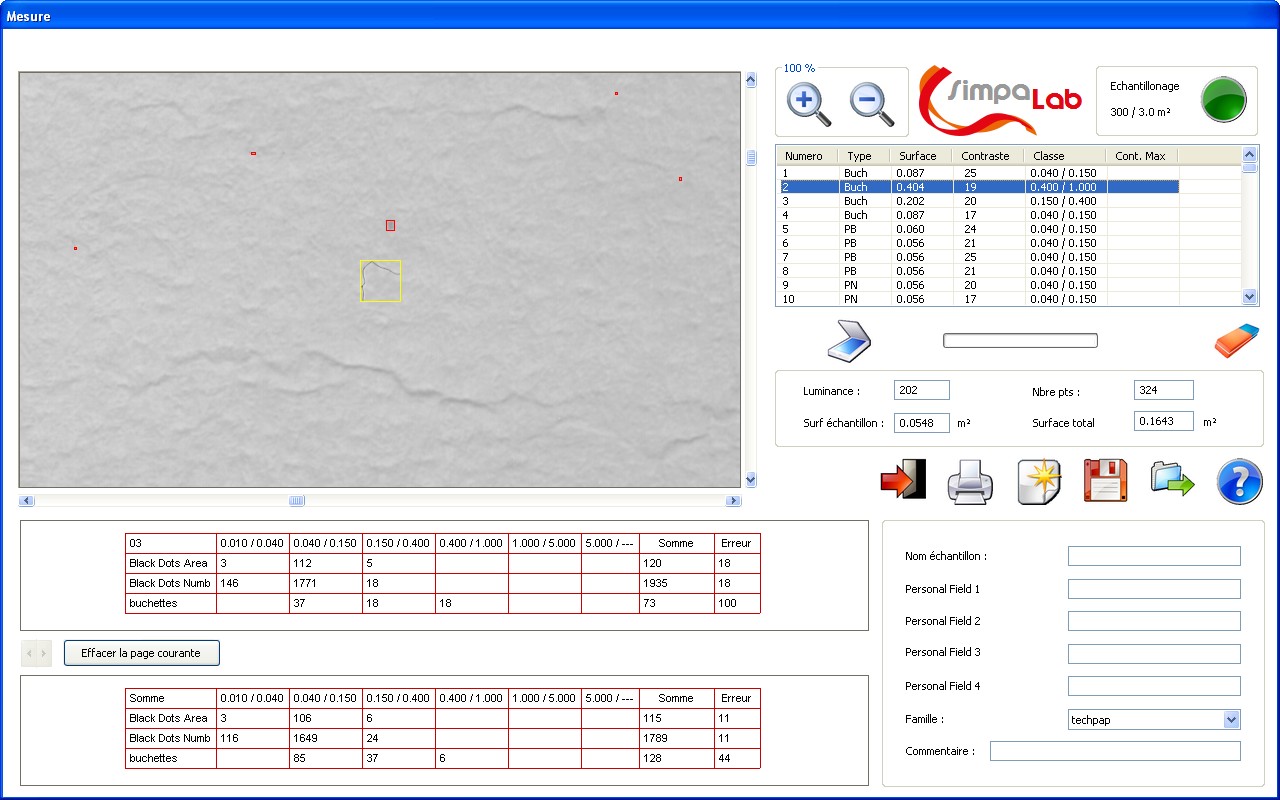

Friendly software :

1 MEASUREMENT WINDOW
- Individual investigation of each detected spot
- Results table (configurable)

1 CONFIGURATION WINDOW
- ISO classes
- 11 configurable classes

 download brochure in english

download brochure in french
