On Line HR3D

On Line roughness and step height measurement



  • A powerful On Line tool for assessing objectively the control of roughness and of score, providing instantaneous accurate test results and ensuring a quick return on investment


Description

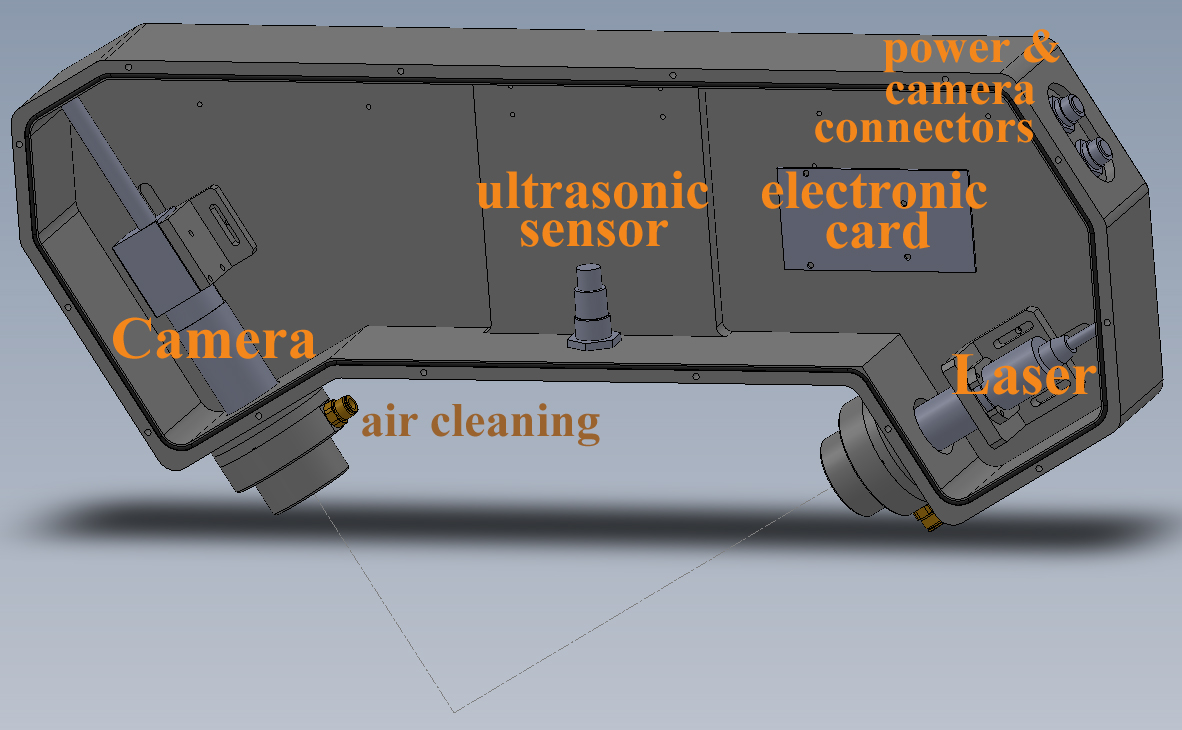

• HR3D enables instantaneous and accurate measurement of the surface topography.• Available in  2 versions  : for measurements in the laboratory and an online system (see our Lab device page)

• Typical applications for the HR3D :
- quality control for roughness of board and paper
- quality control for score of board packaging
- quality control for roughness of engineered wood panel

Measurements and results

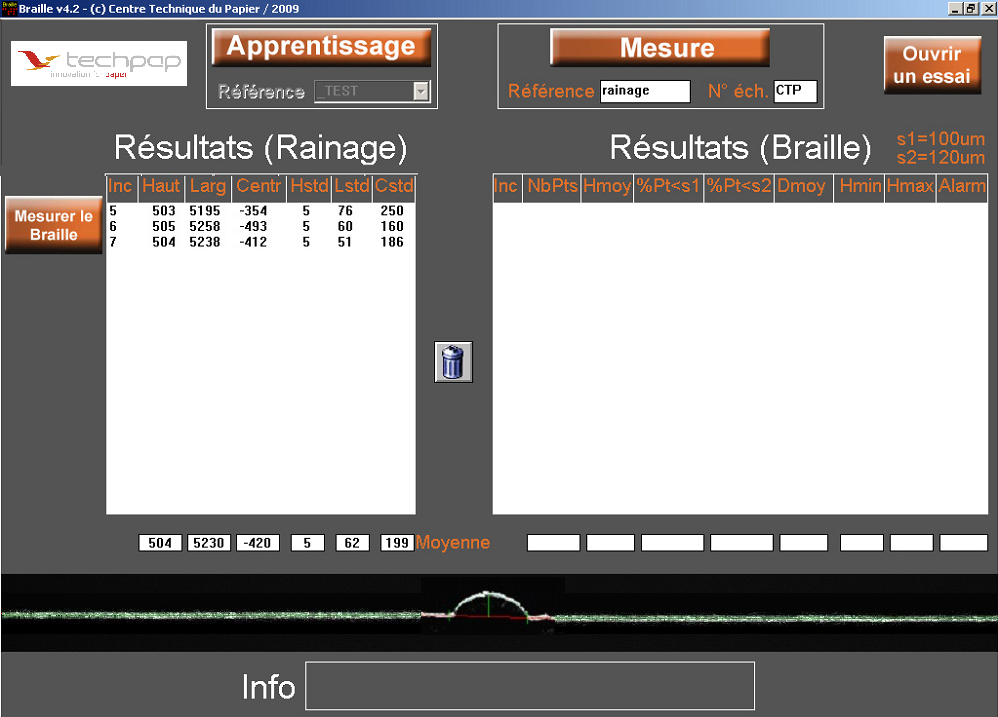

The user friendly software, running in a controlling PC under latest Windows operating system, receives the recorded data and calculates the several roughness parameters Ra, Sa, Rq, Sq, Ra MinMax, Rq MinMax and provides test reports which may be easily integrated into any network or DCS.



Technical Data :
- Measurement width : 35 mm
- Vertical range : 1,6 mm
- Length unlimited



HR3D brochure English

HR3D brochure French
